Exclamation Pinion seal change - Help with Lug nut pre-load.

Hey guys,

I had my Pinion seal changed but the mechanic did not checked the pre-load on the lug nut, now it's to tight (whining noise) if we take it back out, how do we know how to place it correctly?

Transporter83 is offline
Sponsored Links
Advertisement

post #2 of 5 (permalink) Old 06-08-2017
Apprentice
4.6L Member
S197 Member

Scott2's Avatar

Joined: Sep 2009
Location: King City
Posts: 239

Garage
If only the pinion seal was replaced I would not think you need to check the pinion pre-load. An inch-pound torque wrench typically used for bicycle repair is used to test pinion pre-load, this is with the axles removed.



Your likely problem is that the pinion nut was replaced with an impact gun and not properly torqued to factor specifications. If the nut is too lose this can be corrected by torquing properly, if the nut is too tight the "crush sleeve" may be compressed to much and the original pre-load can not be achieved.

Urambo Tauro likes this.



2008 GT/CS Auto Mods Courtesy: AeroForce, Agent 47, Air Lift Performance, American Racing Headers, Auto Meter, Axle Exchange, Baer, BMR Suspensions, CPC, Canton, Covercraft, Cervini's Auto Design, DaSilva Racing, DiabloSport, FRPP, Fore Precision, JLT Perf, Kirban Perf, Lube Locker, Magnaflow, Maximum Motorsports, Moroso, Nitto, Performance Automatic, Pioneer, Raxiom, Royal Purple, Russell Perf, SCT, Shelby Perf Parts, SOS, Stack Racing, Steeda, StopTech, TA Perf, TCI Auto, UPR & Vortech
Scott2 is offline
post #3 of 5 (permalink) Old 06-08-2017
GT Member

Urambo Tauro's Avatar

Joined: Mar 2010
Location: SE Mich
Posts: 1,727

+1^

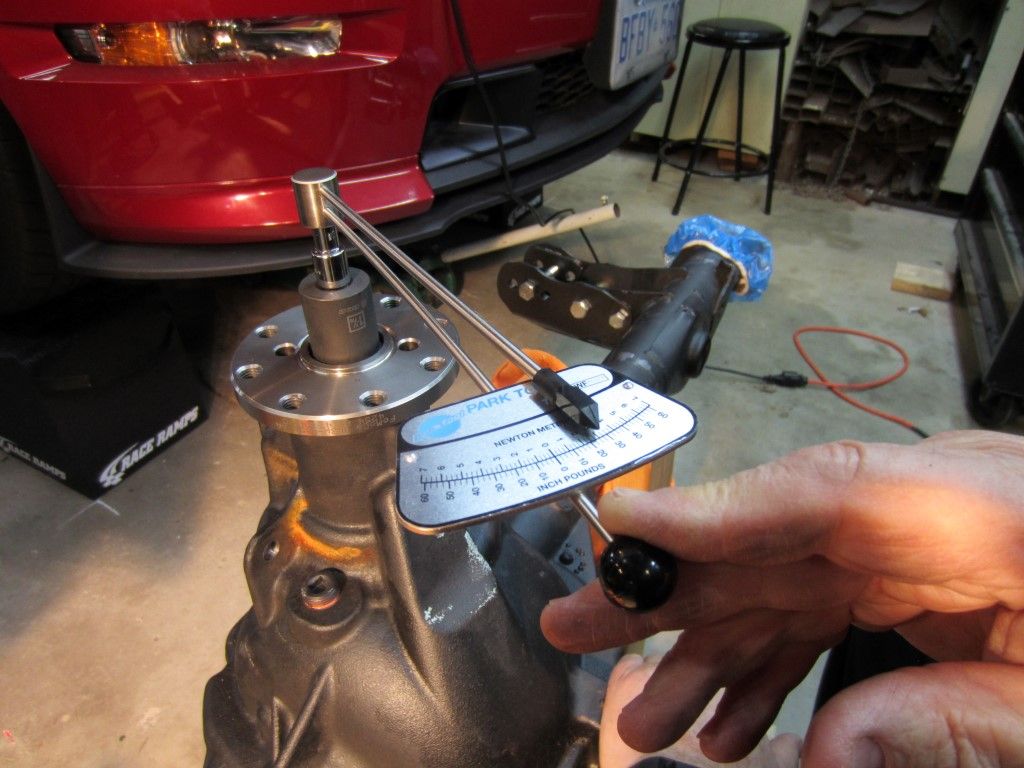

As seen in the pic that Scott2 posted, you'll want to use a beam-style torque wrench, not a clicker. Use that to measure the amount of torque required to freely turn the pinion. Tighten the nut a little at a time with a ratchet or breaker bar, frequently stopping to check the preload. On an axle with used bearings, there should only be about 8-14 lb-in of preload. Be careful and DO NOT overshoot that figure.

1995 Mustang GT (5.0), daily driver
1995 GMC C2500 (5.7), alternate daily driver
Urambo Tauro is offline

post #4 of 5 (permalink) Old 06-12-2017
Apprentice
S197 Member

lenko's Avatar

Joined: Feb 2006
Location: Southern Alberta
Posts: 160

You'll need a new crush sleeve and crush it to read about 15 or slightly less inch lbs with the used bearings in your case. I'd get a new nut as well. I installed a solid spacer in mine so I don't have to worry about preload, But seeing your mechanic over crushed yours you can't measure your crush sleeve to obtain the proper dimension to shim the solid spacer to get the same proper preload. You could crush a new sleeve to the right preload and then take everything apart and measure it and then put back together with the solid spacer. Lots of work. Good luck with your mechanic. Posts 3 and 4 above are good advice and illustrate as how to measure peload.

Saleen VI Stage 3 Brenspeed 530 hp, Comp Cams VSR 127300, 410 gears, Trufiber 3" Cowl Hood

Last edited by lenko; 06-17-2017 at 11:51 AM.
lenko is offline
post #5 of 5 (permalink) Old 06-12-2017
Apprentice
S197 Member

lenko's Avatar

Joined: Feb 2006
Location: Southern Alberta
Posts: 160

Scott2 said:
"If only the pinion seal was replaced I would not think you need to check the pinion pre-load. An inch-pound torque wrench typically used for bicycle repair is used to test pinion pre-load, this is with the axles removed."

That's possible but you would have to get the nut to exactly that same position it was before you took it off to the remove the seal. It's possible and I've seen posts where some mark the position of the nut, but that's hard to do and I wouldn't rely on that unless the preload read within the parameters.
