Shorty install Fail

I knew the header install on the mustang was bad but this is my second failed attempt. Sprayed the 2 nuts near the collector with PB Blaster and left overnight but they still won't budge! Running out of options other than having a shop do it. Not having a lift and air tools blows. Anyone have any tips before I give up?

Also noticed a section of one of my exhaust piping to be slightly flattened, not sure how much of an issue this is. Probably came from the factory like this but obviously I find this out only after the warranty ran out earlier this year....

Attached Thumbnails
Click image for larger version

Name:	IMG_20160608_131707.jpg
Views:	173
Size:	863.6 KB
ID:	523730
Masterang is offline
Sponsored Links
Advertisement

post #2 of 22 (permalink) Old 06-08-2016
SITE ADMINISTRATOR
Mustang II Member
V6 Member
4.6L Member
5.0L Member
S197 Member

kenv's Avatar

Joined: Jan 2007
Location: Levittown
Posts: 13,074

In my limited experience if a nut is that corroded it will take heat or cutting to get it off. A shop should not charge that much to do the job. Take the car to one for an estimate.


2013 GT CONVERTIBLE GHIG
2015 F-150 King Ranch crew cab

Dogs are not our whole lives, but they make our lives whole.
Saving one dog will not change the world, but surely for that one dog, the world will change forever.
AFM SITE ADMINISTRATOR

NEVER APOLOGIZE FOR BEING PATRIOTIC!
kenv is offline
post #3 of 22 (permalink) Old 06-08-2016
PONY Member

740weapon's Avatar

Joined: Dec 2010
Location: Salem
Posts: 702

Torch it red hot.
740weapon is offline

post #4 of 22 (permalink) Old 06-08-2016
GT Member
2.3L Member
S197 Member

bl817's Avatar

Joined: Jul 2010
Location: Fort Worth
Posts: 1,293

Garage
the flat spot is from a speed bump more than likely, didn't come from the factory that way. if you don't have access to a torch set up, you can try the butane flame canisters for a lot cheaper. they don't get as hot but still may work. I used one on the rear pinion driveshaft bolts (heated the flat mating surface) and had success. not sure why Ford chose to use star point driveshaft bolts. PITA. that was on my 93' but anyway....good luck
bl817 is offline
post #5 of 22 (permalink) Old 06-08-2016 Thread Starter
Apprentice

Masterang's Avatar

Joined: Aug 2012
Location: Gaith
Posts: 175

Garage
Quote:
Originally Posted by bl817 View Post
the flat spot is from a speed bump more than likely, didn't come from the factory that way. if you don't have access to a torch set up, you can try the butane flame canisters for a lot cheaper. they don't get as hot but still may work. I used one on the rear pinion driveshaft bolts (heated the flat mating surface) and had success. not sure why Ford chose to use star point driveshaft bolts. PITA. that was on my 93' but anyway....good luck
If I had a lift I would be good with torching the damn things but crawling under the car with a torch and with the location being so cramped it's a disaster waiting to happen. I should leave this one up to the experts as advised by Kenv.

If it was from a speed bump both pipes would be dented equally or at least scrape marks should be visible on the other. A hit like that would have made quite a noise too and no one else drives my car.
Masterang is offline
post #6 of 22 (permalink) Old 06-08-2016
BOSS Member

Blazin72's Avatar

Joined: Sep 2010
Location: Union
Posts: 3,543

Garage
Did you buy your car new or used? Isn't that the spot that the factory resonators are normally located or do the V6s not come with the resonators?

Either way, check to see if the other pipe has the same flat spot along the top of the pipe in the same place. My guess is that the flat spots are from the factory as they are on the GT resonators.
mustang-lover05 likes this.
Blazin72 is offline
post #7 of 22 (permalink) Old 06-08-2016
GT Member
V6 Member
S197 Member

Siber Express's Avatar

Joined: Mar 2010
Location: East
Posts: 2,358

Quote:
Originally Posted by bl817 View Post
the flat spot is from a speed bump more than likely, didn't come from the factory that way. if you don't have access to a torch set up, you can try the butane flame canisters for a lot cheaper. they don't get as hot but still may work. I used one on the rear pinion driveshaft bolts (heated the flat mating surface) and had success. not sure why Ford chose to use star point driveshaft bolts. PITA. that was on my 93' but anyway....good luck
The Flat spot is there to make the left pipe and the right pipe different to get rid of drone in the factory system.
As for getting the nuts off of the mid pipe. I did mine in my garage with the car on jack stands, you need extension long enough to get down below the pipe and a breaker bar with an extra piece of pipe that slides over the breaker bar for a cheater. They will either break loose or break. I had to cut 1 of mine off with a 4.5 inch grinder with a metal cutting wheel.

http://i124.photobucket.com/albums/p34/Siberexpress/Sterling/Stripes/af58edf0-2e2e-4ffe-a201-405b00a627bc_zpseb5ae052.jpg
2013 Performance Package V6
2013 F150 6.2L Boss
Yes it is a Boss
Siber Express is offline
post #8 of 22 (permalink) Old 06-08-2016 Thread Starter
Apprentice

Masterang's Avatar

Joined: Aug 2012
Location: Gaith
Posts: 175

Garage
You're right it's by design, I see peeps on other forums worrying about the same flattened section.

I used a 10 in. extension with a breaker bar and didn't have any room to turn the bar. I'll have to buy the 20 in. extension and give it a go. Thanks!

Do you know if yours had resonators? I don't recall seeing them on mine, I'll have to check tomorrow.
Masterang is offline
post #9 of 22 (permalink) Old 06-08-2016
GT Member
V6 Member
S197 Member

Siber Express's Avatar

Joined: Mar 2010
Location: East
Posts: 2,358

Quote:
Originally Posted by Masterang View Post
You're right it's by design, I see peeps on other forums worrying about the same flattened section.

I used a 10 in. extension with a breaker bar and didn't have any room to turn the bar. I'll have to buy the 20 in. extension and give it a go. Thanks!

Do you know if yours had resonators? I don't recall seeing them on mine, I'll have to check tomorrow.

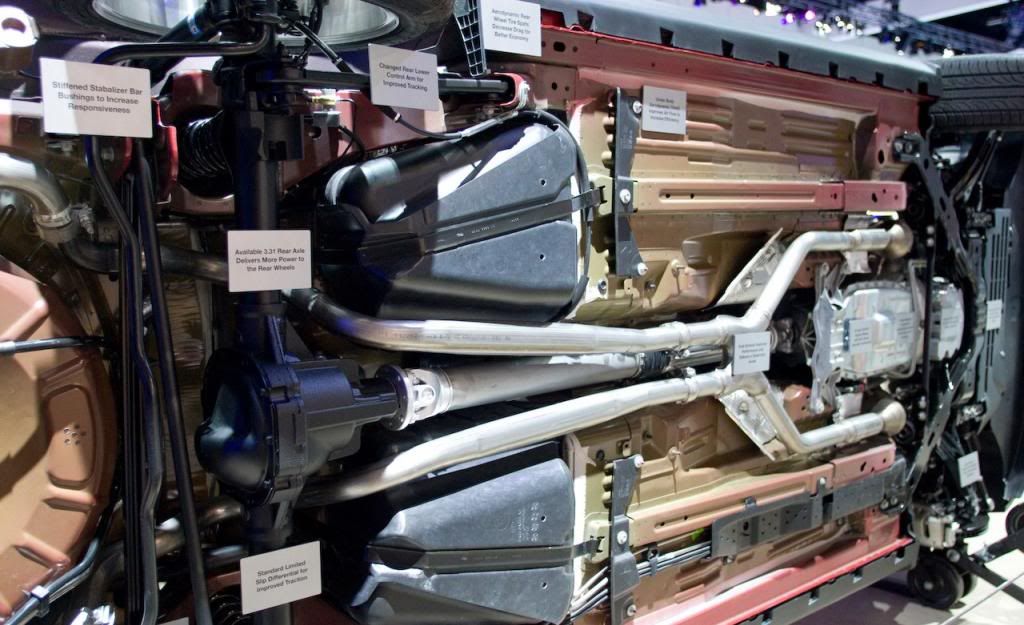

The Resonators are right after the bend at the bottom of the Catalytic converter.

One of the nuts on the right side is hard to get too even with the extensions, but using more than one makes it easier to get down below the mid pipe.
Masterang likes this.

http://i124.photobucket.com/albums/p34/Siberexpress/Sterling/Stripes/af58edf0-2e2e-4ffe-a201-405b00a627bc_zpseb5ae052.jpg
2013 Performance Package V6
2013 F150 6.2L Boss
Yes it is a Boss
Siber Express is offline
GT Member

Blackpenguin69's Avatar

Joined: Dec 2010
Location: west texas
Posts: 2,391

v6 and 5.0's had different over axle pipes. V6 had flat spots and 5.0 had resonators.

2014 Black 5.0 Track Pack with to many mods.
Blackpenguin69 is offline
post #11 of 22 (permalink) Old 06-11-2016 Thread Starter
Apprentice

Masterang's Avatar

Joined: Aug 2012
Location: Gaith
Posts: 175

Garage
Hi all,

I (barely) managed to get the 2 nuts at the collector end out with an impact wrench so that problem is solved. Torching it did not work as well, $400 later and 1,100 reverse torque impact wrench worked it's magic.

The first 13mm nut at the engine block end was ok coming out (Pic 1) the rest are all rusted tight. I took the impact wrench to the lower ones and the stem from the engine block came off with the rusted nut still in place!, see Pic 2. Can I just put some red loctite on there and thread it back into the engine block or is this a bigger problem?? Thanks.

Edit: Not an issue, the spindle comes out and new bolts from the manufacturer go in.
Attached Thumbnails
Click image for larger version

Name:	IMG_20160611_141146 - Copy.jpg
Views:	141
Size:	566.5 KB
ID:	524049   Click image for larger version

Name:	IMG_20160611_141154.jpg
Views:	85
Size:	264.9 KB
ID:	524057   Click image for larger version

Name:	IMG_20160611_141221 - Copy.jpg
Views:	73
Size:	800.9 KB
ID:	524065

Last edited by Masterang; 06-11-2016 at 11:34 PM.
Masterang is offline
post #12 of 22 (permalink) Old 06-11-2016 Thread Starter
Apprentice

Masterang's Avatar

Joined: Aug 2012
Location: Gaith
Posts: 175

Garage
Quote:
Originally Posted by Blackpenguin69 View Post
v6 and 5.0's had different over axle pipes. V6 had flat spots and 5.0 had resonators.
V6 has resonators too.
Attached Thumbnails
Click image for larger version

Name:	IMG_20160609_142111.jpg
Views:	122
Size:	1.00 MB
ID:	524073
Masterang is offline
GT Member

Blackpenguin69's Avatar

Joined: Dec 2010
Location: west texas
Posts: 2,391

Quote:
Originally Posted by Masterang View Post
V6 has resonators too.
like I stated, v6 doesn't have them on the over axle pipe.

2014 Black 5.0 Track Pack with to many mods.
Blackpenguin69 is offline
Rookie

rafforr2012gt's Avatar

Joined: Sep 2015
Location: Orlando, Fl
Posts: 39

Garage
Mine has the same dent on the passenger side, in my opinion is from the factory but i could be wrong.

The Ford Mustang is more than just a car, is passion and family.
rafforr2012gt is offline
post #15 of 22 (permalink) Old 06-11-2016 Thread Starter
Apprentice

Masterang's Avatar

Joined: Aug 2012
Location: Gaith
Posts: 175

Garage
Quote:
Originally Posted by rafforr2012gt View Post
Mine has the same dent on the passenger side, in my opinion is from the factory but i could be wrong.
Yes it's from the factory, not a problem.
