Hey guys,

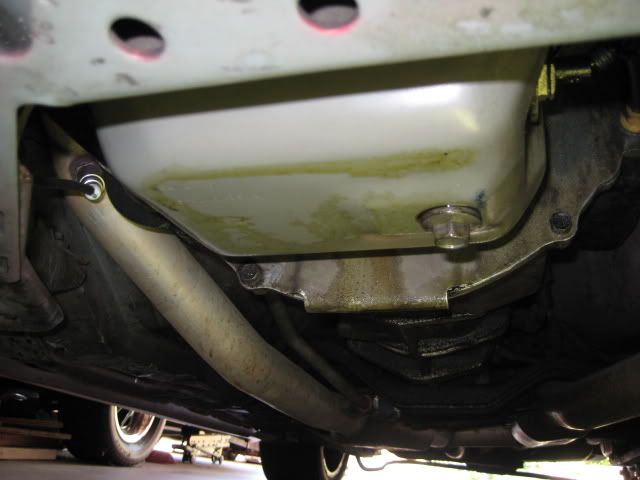

I have some oil leaks coming from around the oil pan area. At first I thought it was coming from the lower drain plug, which I replaced with a new Ford unit (newer style with built in O-ring). Cleaned everything up and the next day I get under the car to take a look and still find evidence of a couple of leaks.

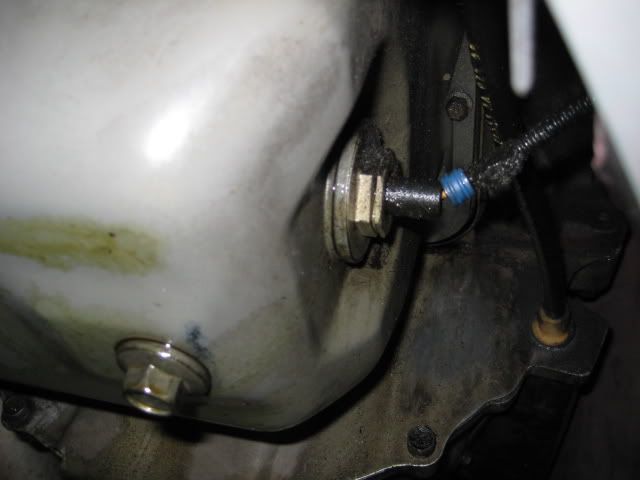

I am going with RMS seal and the side oil level sending unit that bolts into the side of the oil pan....what do you guys think?





·
Registered
Joined
·
432 Posts
Have you checked the oil pan bolts? I dont mean to insult your intelligence, but sometimes it is the most obvious thing that can kick your butt:scratchchin


·
Registered
Joined
·
230 Posts

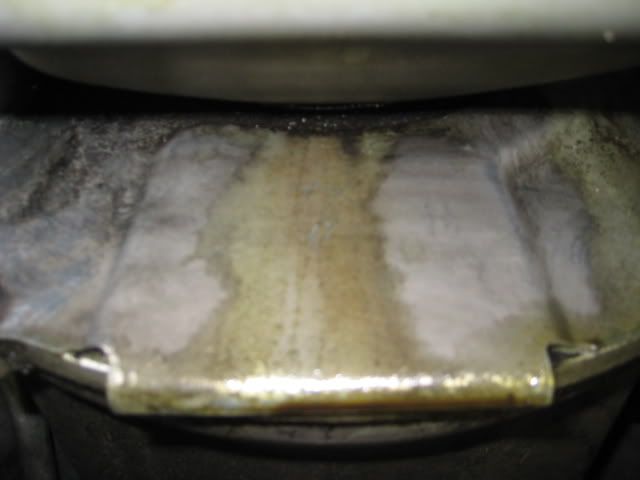

+ 1 on the oil pan bolts, it looks like the oil is leaking somewhere high and trickling down and sticking to the underside of the pan


·
Registered
Joined
·
40 Posts
From your pics I would suggest 2 things.
1. rear main seal.
2. I've seen this a lot on 302's. check the very back side of the valve covers, they will leak, then it looks like your rear main seal is leaking when it's actually the valve covers dripping down the back-side.


·
Registered
Joined
·
154 Posts
you sure you didnt take pictures of my under carriage.
I have the same issue. i was told Rear Main Seal.
